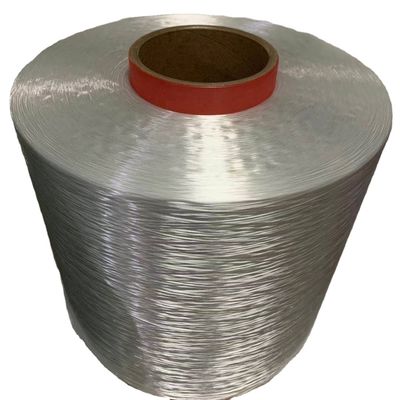

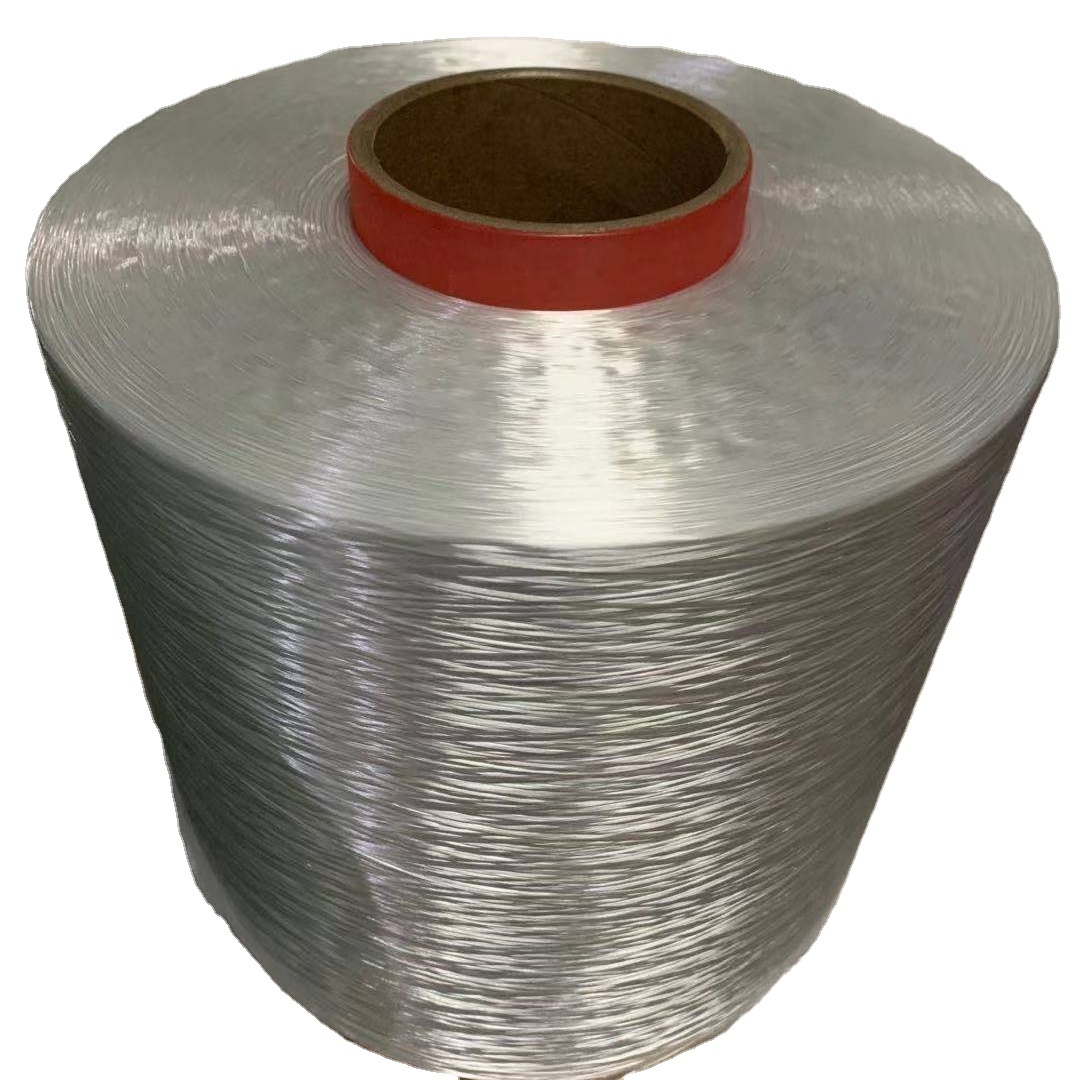

High Tenacity Polyester Binder Yarn 1000D 1110 Tex As Binder for Optical Cables
Product Description
POLYESTER BINDER YARN
Polyester yarns are manufactured from first quality materials. Used mainly as binder for optical cables, they have very high tenacity and minimal shrinkage. We deliver the yarn wound on cardboard tube, under high pressure to allow the yarn to be used with high-speed servers. Each type has standard or low shrinkage to choose. Polyester yarn is non-twisted.
It can be also delivered under DUAL form with 2 independent yarns wound in the same tube, doubling your machine capacity.
We develop and produce binder yarns to meet the development of fiber optic cable design. Today's small and compact cables offer little or no margin for material shrinkage. Therefore, we have introduced an ultra-low shrinkage polyester binder yarn. The range of binder yarns also includes a swellable WB binder yarn.
Available Colors
White, Red, Yellow, Black
Specification
Standard & Low shrinkage
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (177°C, 10min, pre-tension 0.05cN/dtex) (%) |
| 1000 |
1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 1500 |
1660 |
6000 |
≥95 |
|
|
| 2000 |
2220 |
4500 |
≥125 |
|
|
| 3000 |
3330 |
3000 |
≥185 |
|
|
Dual Form
| Weight (Denier) |
Linear Density (tex) |
Length Per Kilogram (m/kg) |
Breaking Strength (N) |
Elongation (%) |
Heat Shrinkage (180°C, 10min) (%) |
| 2×1000 |
2x1110 |
9000 |
≥65 |
≥13 (Standard yarn), ≥22(Low shrinkage yarn) |
4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn) |
| 2x1500 |
2x1670 |
6000 |
≥95 |
|
|
| 2x2000 |
2x2220 |
4500 |
≥125 |
|
|
Values shown are for references only. For more accurate figures, please ask for technical data sheets.

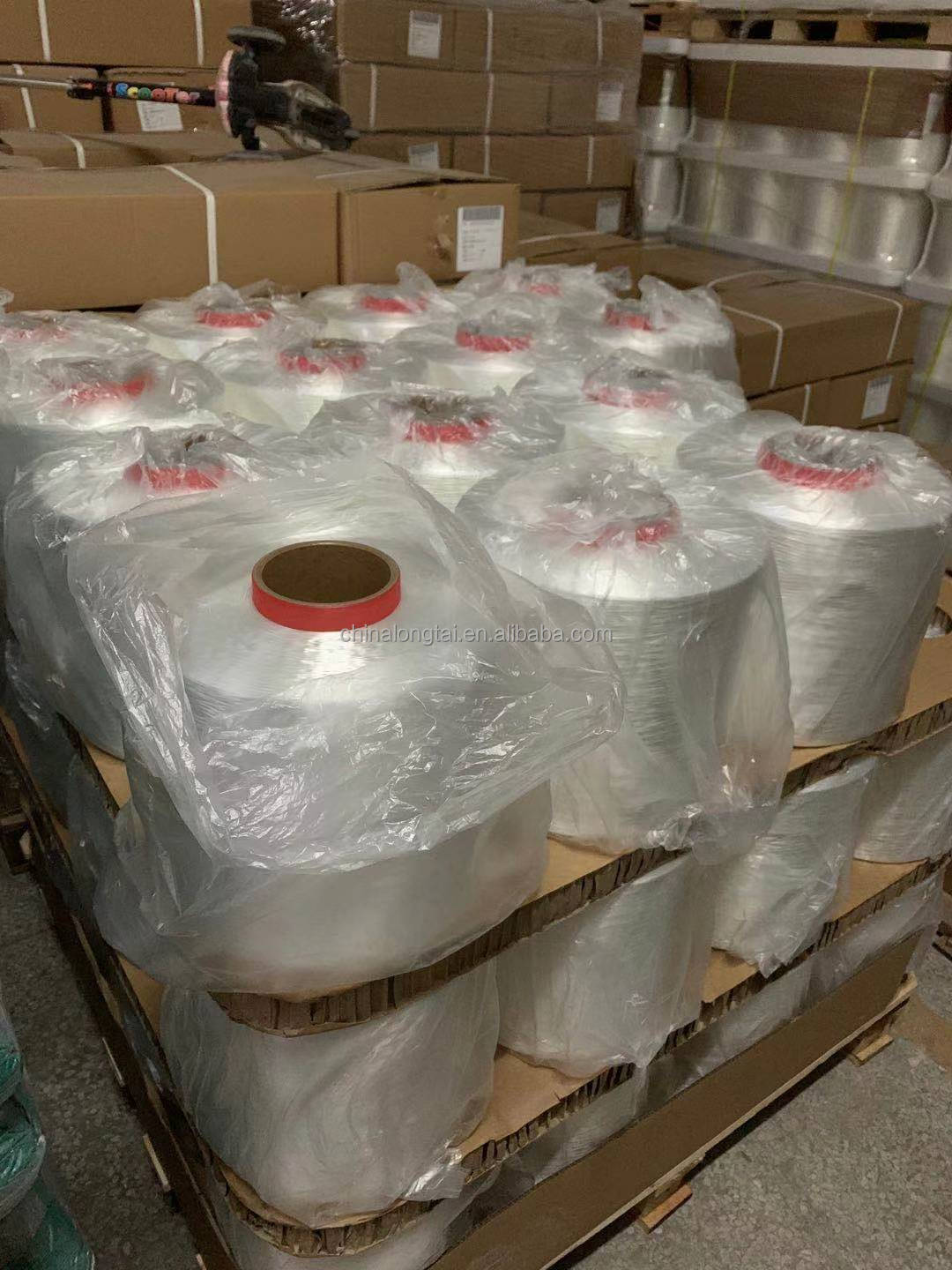

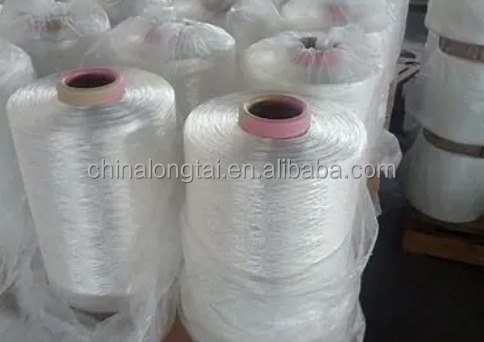

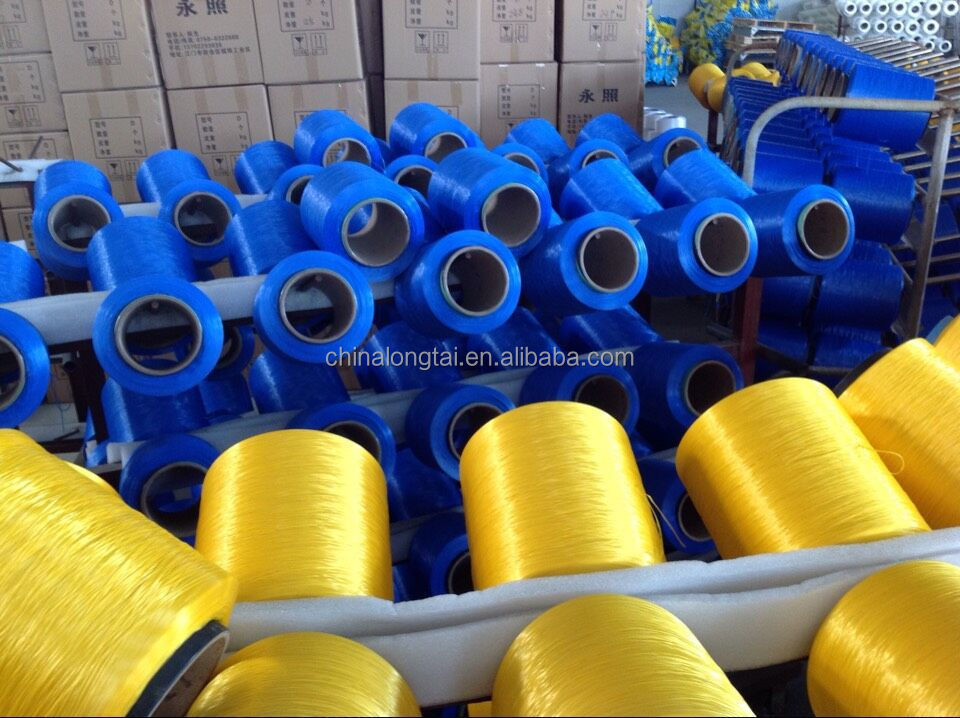

Product Show

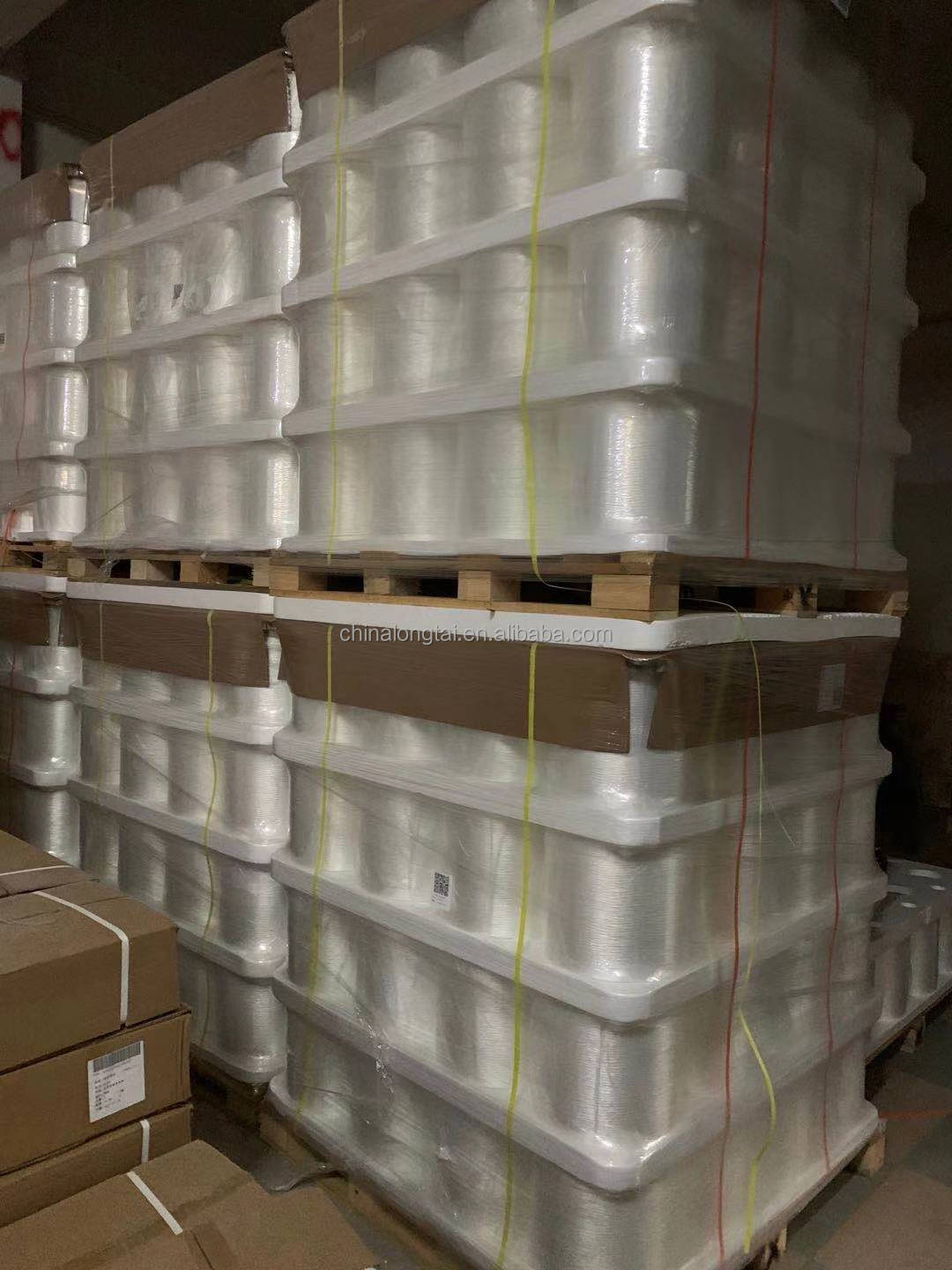

Packaging & Shipping
| Bobbin ID (mm) |
Bobbin Height (mm) |
Yarn OD (mm) |
Yarn Weight (kg) |
Core |
Standard: 95, 128
Optional: 52,76 |
Standard: 170, 185, 200, 215
Optional: 110, 285 |
200-250 |
2-6 |
Paper |
Application
Polyester Binder Yarn is used for binding of SZ-stranded optical fibers at high speed. They are available in Low Shrinkage (LS) and Ultra Low Shrinkage (ULS) versions.
Key Features
- High grade polyester
- Spool may exceed 4000 rpm
- Dual-end versions available
- Ultra low shrinkage version available
- Optimal use in concentric binders
FAQ
Q: Can we change it to our own logo?
A: Sure, we can help you to add your logo and free design for you.
Q: What is your products' quality?
A: Our factory has advanced machines, we can produce yarn in conical cone machines directly, and the yarn will be much more even and have better strength. Quality guarantee, the bulk cargo will be definitely same as the samples.
Q: Can you offer samples?
A: Of course, we can offer free sample, but the shipping cost will be your own account.
Q: Do you have after-sales service?
A: Yes, we can offer you after-sales service, and you can contact us if you have any question.
Q: How long can I get the price?
A: The Prices will be quoted within 24 hours after we get your inquiry with detailed information.
Company Information
Jiangxi Longtai New Material Co., Ltd. was established in April 2002. The company successfully Listed in China OTC market in Oct.,2015 with Stock No. 836898. Specialized in the development and sales of all kinds of New Materials, Wire & Cable Materials, and Agriculture Products. The Factory monthly output can achieve 1000Mts and more than 30% of the products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad. The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. We always sincerely welcome any domestic and overseas customers with great enthusiasm.
